Vespers
1.5 ATASquarer profile with more defined corners.
YOU’RE VIEWING VESPERSRIGID COLLECTIONRigid shell · lyingDiscuss Vespers
Vespers
A one-person rigid cabin at 1.5 ATA. A featured 34-inch diameter, squarer door, and large viewing window. Built in stainless steel for a dedicated lying space.
Built to order. All sales final. No returns. A 24-month warranty covers defects with proper use. Lifetime support continues after, with a dedicated contact and parts and service at standard rates.
For example, if a part needs replacing after the warranty, the studio ships the part and walks you through installation, billed at standard parts and service rates.
Starting at $39,900 USD*
* Starting prices are for a standard setup. Configuration, optional upgrades, and delivery requirements may affect the final amount. Exact pricing is confirmed in writing before you order. Financing can be discussed during consultation.
Configuration, options, and delivery confirmed in writing. Financing options available to discuss.

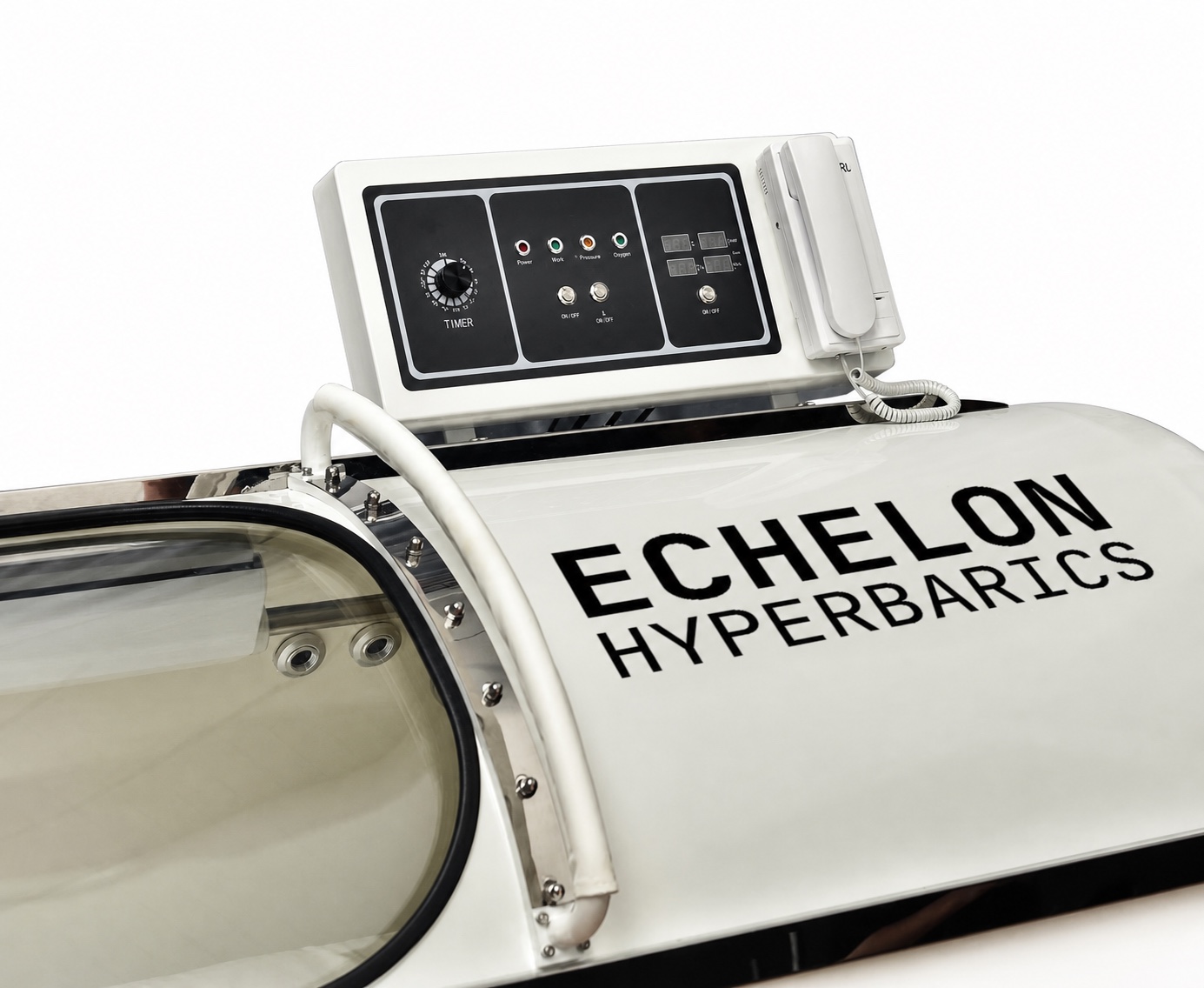

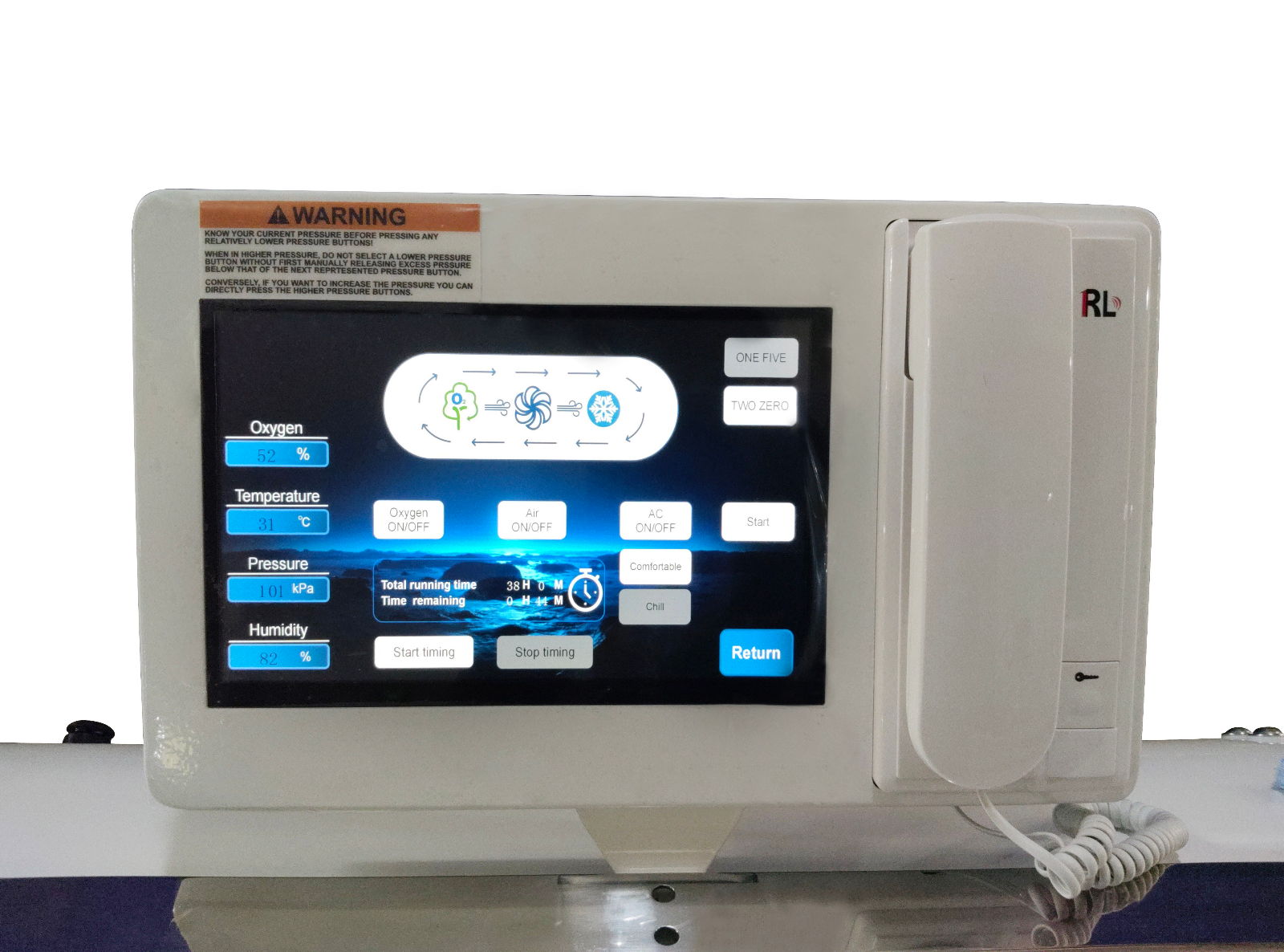

Button controls are standard. Touchscreens shown in other gallery photos are optional upgrades, an additional USD 4,950.

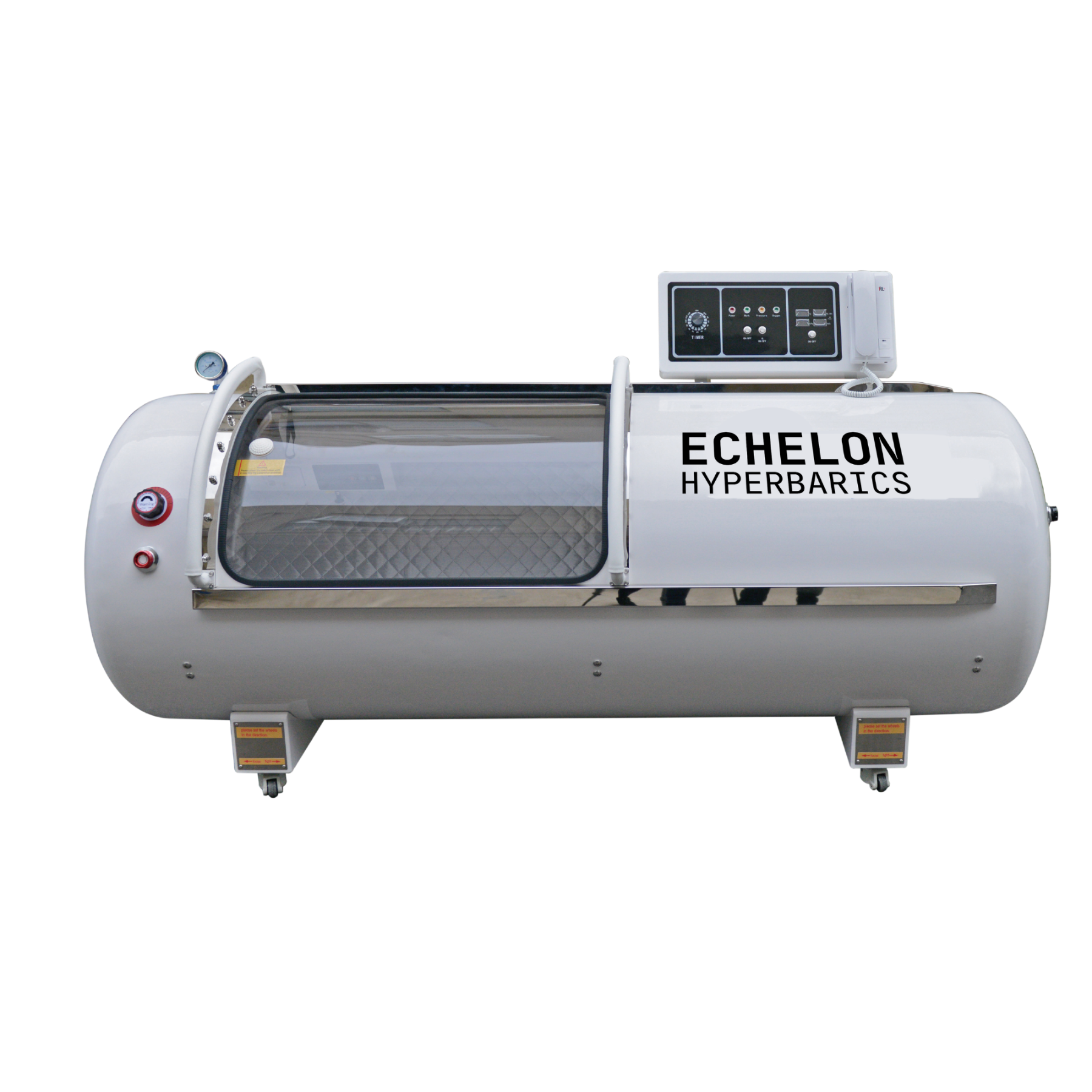

Vespers chamber with a squarer door and more defined corners
Vespers pressurizes the cabin with air. Oxygen is supplied separately through a headset or mask: 93% ±3% at 10 L/min.
- Pressure
- 1.5 ATA
- Diameter
- 34 in featured · series diameters 30 / 34 / 36 / 40 in
Touchscreen: +USD 4,950Optional upgrade at additional cost. Button controls are standard.
Compare chambersBuilt to order. All sales final. No returns. 2-year warranty. Lifetime support after warranty at standard rates.
Warranty, returns & support detailsBUILT TO ORDER
4–6 weeks total
From order to delivery
SPECIFIED FOR YOU
Details in writing
Configuration, pricing, and purchase terms
ONGOING CARE
2-year warranty
Lifetime support after, at standard rates
A DEDICATED PLACE TO PAUSERoom to unwind.
Room to unwind.
Built around you.
A 1.5 ATA stainless-steel cabin with a squarer door and more defined corners. The featured configuration pairs a 34-inch diameter with US doors. Plan the cabin and supporting equipment around your room.
EXPLORE CABIN DIAMETERS
Listed chamber length88 in
Diameter illustration only. Confirm final length, usable interior space, weight, and equipment clearance before ordering.
Plan your Vespers configurationVESPERS & CIRRUS
Different pressures. Distinct doors.
Similar silhouettes, distinct door designs and pressure ratings. Both featured cabins have a 34-inch diameter and US doors.

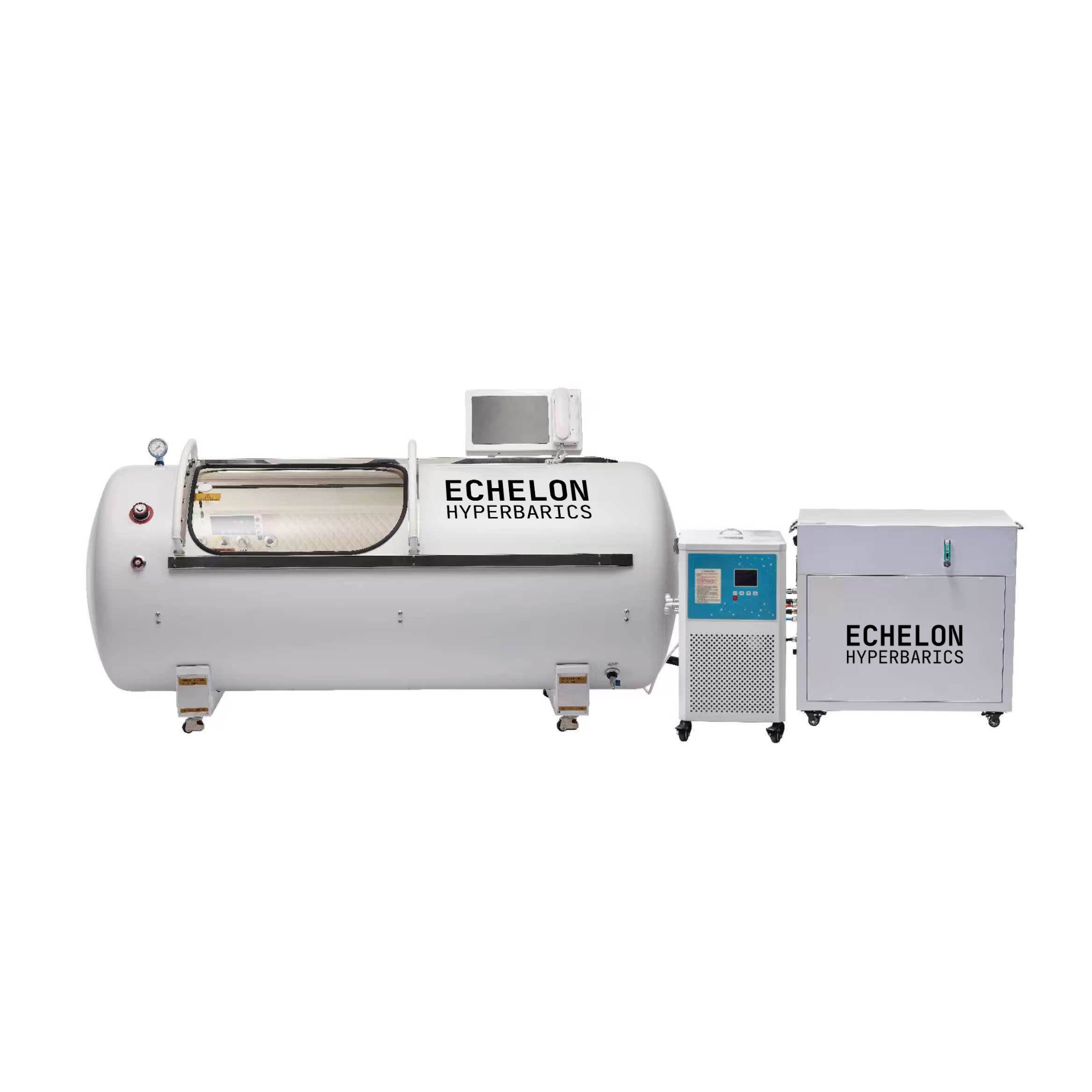

Cirrus
2.0 ATARounded profile with softer curves; thicker construction for the higher pressure rating.
Explore CirrusDoor outlines are illustrative; thickness is not shown to scale. Both models include button controls. An optional touchscreen is an additional USD 4,950 on either model and does not identify the chamber.
DESIGNED FOR COMFORT & RELIABILITYSettle into the quiet.
Settle into the quiet.
Stay connected to the details.
Vespers brings a clear view, readable controls, and session information into one considered space.
A wider view of your world.
An extra-large transparent window keeps your surroundings in view while you lie inside.
Information on both sides.
Large LCD control displays inside and outside make chamber information visible from either side of the cabin.
A straightforward routine.
The controls are designed for operation by one person, with standard buttons and an optional touchscreen interface.
Time, clearly recorded.
A built-in session timer tracks your time in the chamber. A cumulative recorder keeps a running total of operating hours.
An interface you can read.
Interface language options are available. Confirm your preferred language with Echelon before ordering.
Protection built into the system.
The rigid series lists eight integrated safety protection systems. Echelon confirms their individual functions for your build.
MAKE ROOM FOR YOUR ROUTINE
At home in personal and professional spaces.
Home wellness
A dedicated lying cabin for your personal wellness space.
Clinics
A rigid format for a professionally managed setting.

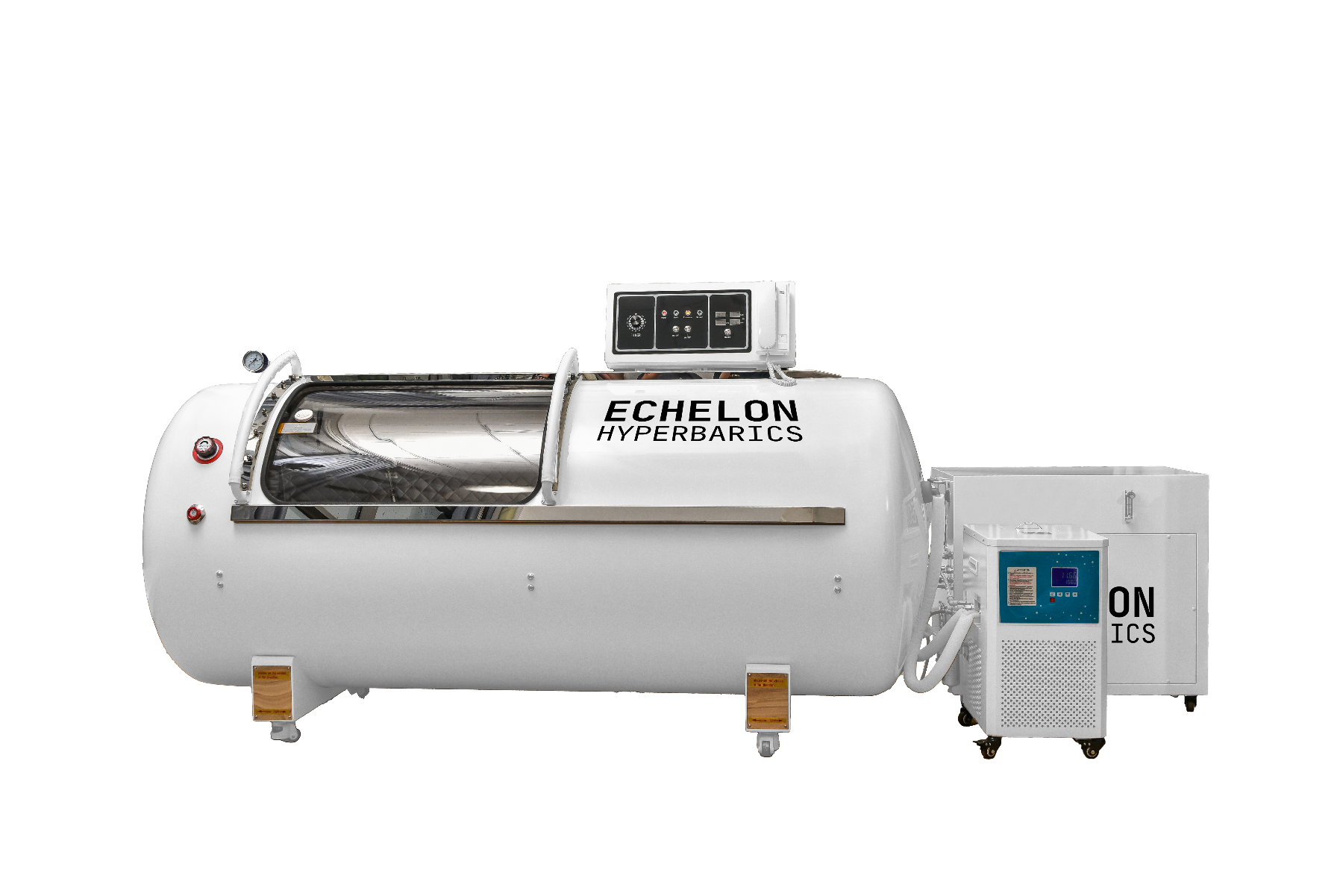

BEYOND THE CABINThe equipment
The equipment
behind your setup.
Two supporting units are shown for the rigid collection. Echelon confirms the equipment package, connections, and space needed for your Vespers build.

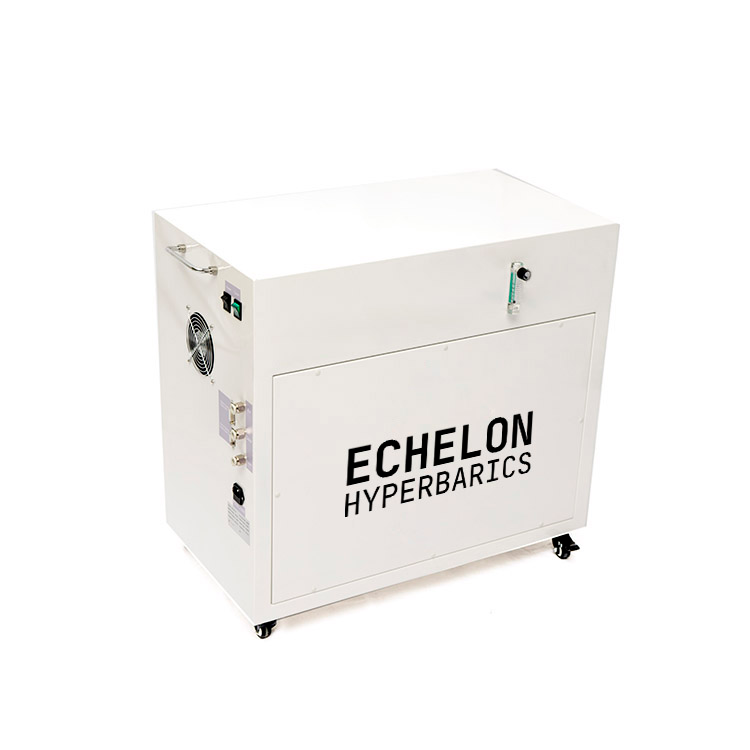

All-in-one machine
The supporting equipment cabinet shown for the rigid-series configuration. Its components and connections are confirmed in your proposal.

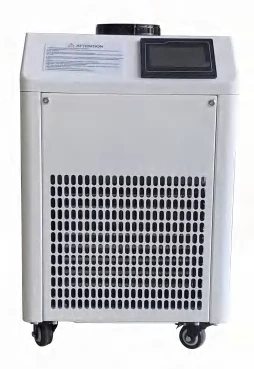

Air concentrator
The companion unit shown with the rigid-series setup. Review its final specification and placement with Echelon.
Equipment images represent the available setup. Final supplied units and electrical requirements are confirmed before production.
VESPERS, AT A GLANCEPrecisely specified.
Precisely specified.
Clearly explained.
1.5 ATAFeatured Vespers pressure
93% ±3%Oxygen supply concentration
8Integrated safety protection systems
- Diameter
- 34 in featured · series diameters 30 / 34 / 36 / 40 in
- Length
- 88 in listed · final overall length confirmed before production
- Cabin
- Stainless steel · grade to be confirmed for the selected configuration
- Cabin weight
- Approx. 308.6 / 330.7 / 352.7 / 396.8 lbs · series values; confirm selected build
- Door design
- Squarer profile with more defined corners
- Door configuration
- US doors on the featured 34-inch configuration
- Oxygen flow
- 10 L/min
- Controls
- Button controls standard; touchscreen upgrade +USD 4,950 (additional cost)
Pressure, oxygen & operationRatings, adjustment range, and operating details
- Pressure
- 1.5 ATA
- Gauge pressure
- Approx. 7 PSI at 1.5 ATA · rounded rating
- Pressure adjustment
- Rated to 1.5 ATA; operating settings confirmed for your build
- Oxygen delivery
- 93% ±3%
- Noise
- ≤45 dB listed; measurement conditions not provided
- Configuration
- Lying
Vespers is rated to 1.5 ATA. Cirrus is rated to 2.0 ATA with a 1.5–2.0 ATA adjustment range. Choosing a touchscreen does not change either rating. PSI figures are rounded gauge pressures. Oxygen concentration describes the supply, not the air throughout the cabin.
Construction, fit & safetyDimensions, weight, and protection systems
- Family
- Rigid shell · lying
- Safety systems
- Eight integrated protection systems; individual functions confirmed with your build
- Voltage
- Confirm electrical requirements for the selected configuration
- Documentation
- Review the documentation for your selected chamber and configuration with Echelon
The four listed weights apply across the rigid series and are not explicitly assigned to individual diameters or models. Echelon confirms your selected cabin’s weight, final dimensions, and the functions of the eight integrated safety systems. The 88-inch length is a listed value to verify with your build.
Controls, accessories & ownershipStandard equipment, optional upgrades, and support
- Controls
- Button controls standard; touchscreen upgrade +USD 4,950 (additional cost)
- Optional accessories
- Touchscreen control, adjustable seat, negative ion system, and TV stand; quoted separately
- Interface languages
- Interface language options available; confirm your preference with Echelon
- Installation
- Echelon technician installation included; hardware setup only
- Warranty
- 2 years
- Service
- Lifetime support; standard parts and service rates after warranty
Dimensions, pressure, weight, equipment, and optional items are confirmed in writing before ordering. Listed noise is ≤45 dB; measurement conditions are unspecified.
Echelon hyperbaric chambers for the home, studio, and private clinic. Built to order. Configuration and documentation reviewed before production. Lifetime support. Exact pricing in writing after a consult. Echelon builds the environment and makes no claims about outcomes.
FIND YOUR FIT
Compare chambers
See how Vespers compares. Choose up to two other chambers to explore the details side by side.
2 of 3 chambers
Scroll sideways to compare chambers →
| Buying factors | ||
|---|---|---|
| Pricing | Starting at $39,900 USD* | Starting at $13,900 USD* |
| Chamber family | Rigid shell · lying | Soft-shell portable · lying |
| Position | Lying | Lying |
| Pressure | 1.5 ATA | 1.3 / 1.5 ATA |
| Dimensions | Length: 88 in listed · final overall length confirmed before production Diameter: 34 in featured · series diameters 30 / 34 / 36 / 40 in | 89 in long · 32 or 36 in diameter |
| Cabin weight | Approx. 308.6 / 330.7 / 352.7 / 396.8 lbs · series values; confirm selected build | Approx. 28.7 / 35.3 lbs · depends on configuration; confirm selected size |
| Oxygen delivery | 93% ±3% | 93% via headset / facial mask |
| Oxygen flow | 10 L/min | 5 / 10 L/min configurations |
| Setup / installation | Echelon technician installation included; hardware setup only | Freight to the delivery address; place and connect per the manufacturer manual; first-use briefing with Echelon |
| Warranty | 2 years | 2 years |
* Starting prices are for a standard setup. Configuration, optional upgrades, and delivery requirements may affect the final amount. Exact pricing is confirmed in writing before you order. Financing can be discussed during consultation.
WHAT ARRIVES
Inside the crate.
- Chamber with interior and exterior LCD displays
- Session timer and operating-hour recorder
- All-in-one machine and air concentrator; equipment configuration confirmed in your proposal
- Standard button controls
- Echelon technician installation (hardware setup only)
Rigid chamber deliveryBuilt for you.
Built for you.
Then on its way.
Order to delivery4–6 weeks
+First-use supportWith Echelon
Total lead time from order to delivery. The studio confirms the arrangements for your destination.
Freight to your siteArranged to your delivery address.
Vespers and Cirrus include button controls; their optional touchscreen upgrade is an additional USD 4,950.
Technician installation included.An Echelon technician positions and connects the hardware and explains the controls.
First pressurization, with us.Installers do not pressurize the chamber. Your first pressurization takes place with Echelon on a briefing call.
Built to order. All sales final. No returns. Covered by a 2-year warranty, with lifetime support after at standard rates. View ownership terms.
Your arrival checklist.
0 of 4 reviewedOpen each point, then mark it reviewed. This checklist stays on this page and is not sent to the studio.
Measure the route, not just the room.
Check doorways, turns, and the installation room against the confirmed chamber and crate dimensions. Discuss stairs and any access restrictions with the studio before ordering.
Confirm your power configuration.
Confirm the required electrical configuration and room requirements with the studio before your chamber is built.
Plan your installation.
Echelon technician installation is included for Vespers, Cirrus, and Nimbus. Confirm room access and the installation arrangements with the studio. Installers position and connect the hardware and explain the controls. They do not pressurize the chamber. First pressurization takes place with Echelon on a first-use briefing call.
Photograph the crate on arrival.
Inspect and photograph the crate when it arrives. Contact the studio about any damage; the studio coordinates freight claims. Echelon provides first-use support by phone.
