An entrance chosen for you.
Choose walk-in or wheelchair entry. A two- or three-zipper seal completes the access system; confirm the arrangement for your build.
PORTABLE COLLECTIONSoft-shell portable · walk-in or wheelchair entryDiscuss Meridian
Meridian
A sitting portable with a choice of walk-in or wheelchair-entry designs. More sitting room than Quietus, within a 56 × 52 × 70-inch cabin. Choose your entry and confirm the fit before ordering.
Built to order. All sales final. No returns. A 24-month warranty covers defects with proper use. Lifetime support continues after, with a dedicated contact and parts and service at standard rates.
For example, if a part needs replacing after the warranty, the studio ships the part and walks you through installation, billed at standard parts and service rates.
Starting at $15,900 USD*
* Starting prices are for a standard setup. Configuration, optional upgrades, and delivery requirements may affect the final amount. Exact pricing is confirmed in writing before you order. Financing can be discussed during consultation.
Configuration, options, and delivery confirmed in writing. Financing options available to discuss.

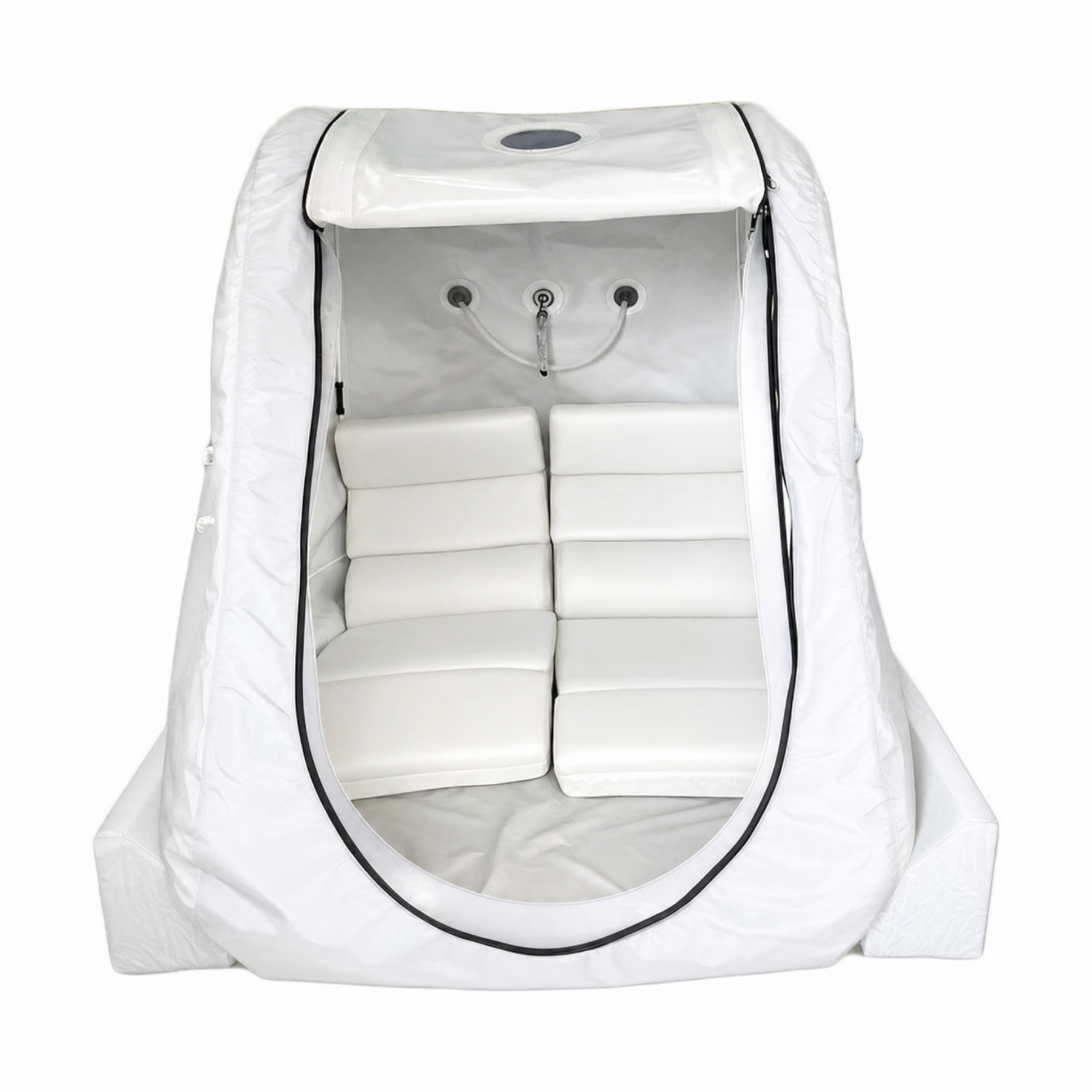

Meridian sitting-style soft chamber, three-quarter view
Meridian pressurizes the cabin with air. Oxygen is supplied separately through a headset or mask: 93%, with 5 or 10 L/min configurations.
- Pressure
- 1.3 / 1.4 ATA · confirm selected configuration
- Chamber size
- 56 × 52 × 70 in (L × W × H)
Built to order. All sales final. No returns. 2-year warranty. Lifetime support after warranty at standard rates.
Warranty, returns & support detailsBUILT TO ORDER
4–6 weeks total
From order to delivery
SPECIFIED FOR YOU
Details in writing
Configuration, pricing, and purchase terms
ONGOING CARE
2-year warranty
Lifetime support after, at standard rates
ACCESS, CONSIDEREDYour space.
Your space.
Your way in.
Start with how you enter. Meridian offers a walk-in design and a wheelchair-entry design, each with the same listed cabin dimensions. Choose the entry around your access needs.
CHOOSE YOUR ENTRANCE
Walk in. Settle into your seat.
The U-type configuration is designed for walk-in access to a seated chamber setup. Review entry clearance and seating with Echelon before your build.
- Length
- 56 in
- Width
- 52 in
- Height
- 70 in
Both entry designs share these listed cabin dimensions. They do not specify the doorway opening or guarantee clearance for a particular wheelchair.
Discuss your access needsDESIGNED FOR COMFORT & RELIABILITYComfort starts
Comfort starts
before you settle in.
From your choice of entrance to the controls inside, Meridian puts everyday access and care at the center of its design.
An open view from within.
Two or three large transparent windows keep the surrounding room in sight throughout your time inside.
Controls close to hand.
A pressure gauge can be read inside the chamber, with controls designed for operation by one person. Review control reach alongside your seating needs.
A separate pressure release.
The emergency valve provides faster depressurization when needed, alongside the chamber’s everyday controls.
Made for regular care.
The washable cotton protective cover makes it easier to keep the chamber fresh between uses.
Support beyond the session.
An internal metal frame maintains the cabin’s shape when deflated, supporting the structure between uses.
A PLACE IN YOUR DAY
Access for your space. Care for your routine.
Personal wellness
Plan an entrance and seated space around your home routine.
Private clinics & studios
Choose the entry design around the people using your space.

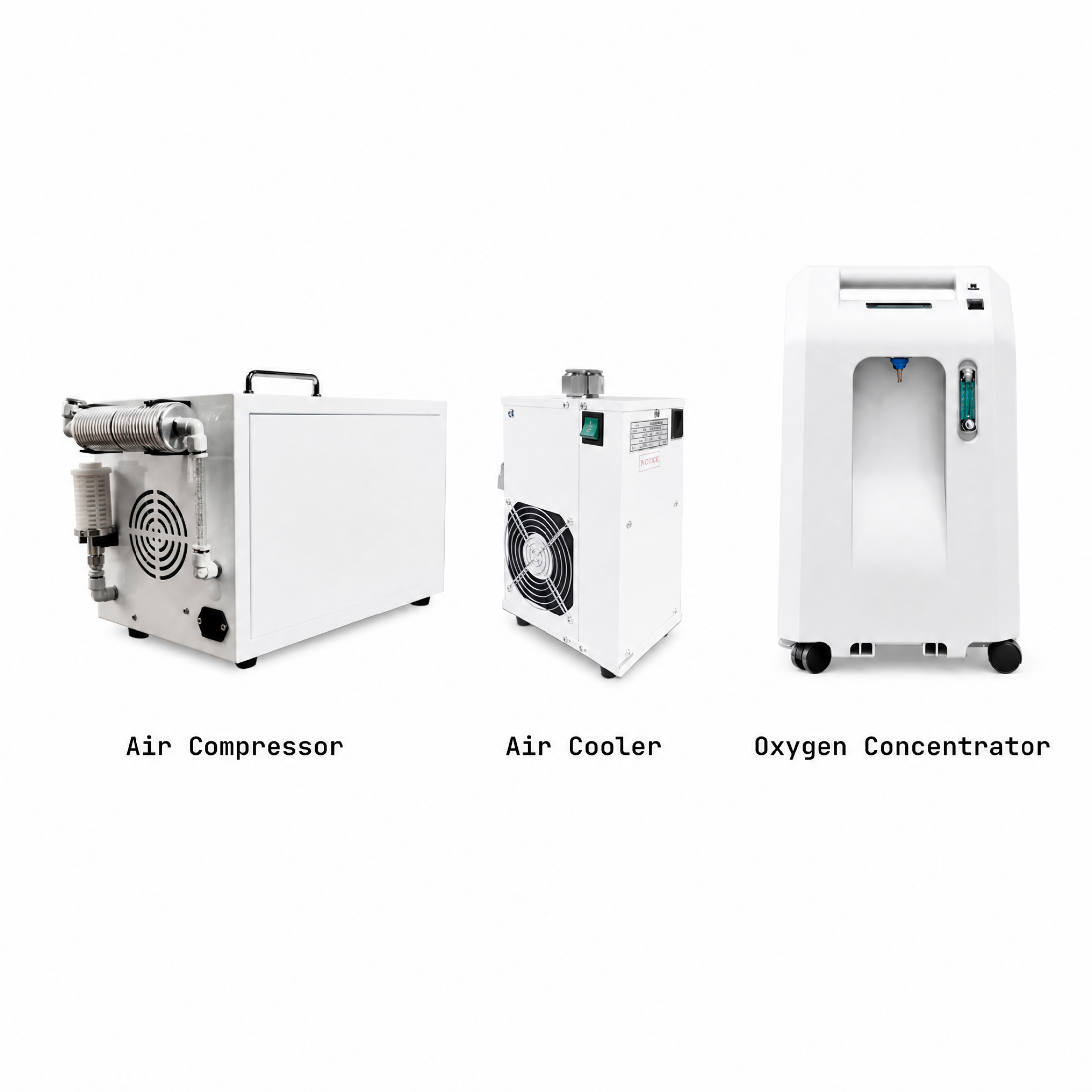

THE EQUIPMENT BEHIND YOUR EXPERIENCEThree machines.
Three machines.
One considered setup.
Your Meridian setup brings together air cooling, chamber pressurization, and a separate oxygen supply. We’ll confirm the equipment configuration with you before your build.
For cabin comfort
Air cooler
Cools the air supplied to the chamber as part of the supporting setup.
For chamber pressure
Air compressor
Supplies the air used to pressurize the cabin to its configured operating pressure.
For oxygen delivery
Oxygen concentrator
Supplies 93% oxygen through a headset or facial mask, with 5 or 10 L/min configurations.
Equipment shown represents the available setup. Your written proposal confirms the supplied units, oxygen flow, electrical requirements, and space needed around the chamber.
MERIDIAN, AT A GLANCEThe essentials.
The essentials.
The finer details.
1.3 / 1.4 ATAOperating pressure options
93%Oxygen via headset or mask
≤45 dBListed noise level
- Chamber size
- 56 × 52 × 70 in (L × W × H)
- Cabin weight
- Approx. 33.1 lbs
- Cabin
- Washable cotton protective cover; cabin material confirmed with your build
- Configuration
- Vertical sitting
- Oxygen delivery
- 93% via headset / facial mask
- Oxygen flow
- 5 / 10 L/min configurations
Pressure, oxygen & soundOperating ratings and delivery details
- Pressure
- 1.3 / 1.4 ATA · confirm selected configuration
- Gauge pressure
- Approx. 4 PSI at 1.3 ATA / 6 PSI at 1.4 ATA · rounded ratings; confirm configuration
- Noise
- ≤45 dB listed; measurement conditions not provided
ATA describes absolute chamber pressure. PSI ratings are rounded pressure above ambient. The 93% oxygen specification applies to the headset or facial-mask supply; the cabin is pressurized with air. Confirm your operating pressure configuration with Echelon.
Meridian’s operating pressure is confirmed for your selected entry design before production. Review the final rating with Echelon when specifying your chamber.
Construction & configurationEntry, windows, materials, and fit
- Family
- Soft-shell portable · walk-in or wheelchair entry
- Voltage
- Confirm electrical requirements for the selected configuration
- Documentation
- Review the documentation for your selected chamber and configuration with Echelon
Two or three zippers and two or three viewing windows, depending on the build. Includes an internal metal frame, washable cotton cover, internal pressure gauge, and emergency depressurization valve. Listed cabin weights are approximate, rounded to one decimal place; confirm the weight for your selected build.
Setup & ownershipInstallation, warranty, and ongoing care
- Setup
- Freight to the delivery address; place and connect per the manufacturer manual; first-use briefing with Echelon
- Warranty
- 2 years
- Service
- Lifetime support; standard parts and service rates after warranty
Final dimensions, equipment, and configuration are confirmed in writing before ordering. The listed noise level does not specify measurement conditions.
Echelon hyperbaric chambers for the home, studio, and private clinic. Built to order. Configuration and documentation reviewed before production. Lifetime support. Exact pricing in writing after a consult. Echelon builds the environment and makes no claims about outcomes.
FIND YOUR FIT
Compare chambers
See how Meridian compares. Choose up to two other chambers to explore the details side by side.
2 of 3 chambers
Scroll sideways to compare chambers →
| Buying factors | ||
|---|---|---|
| Pricing | Starting at $15,900 USD* | Starting at $11,900 USD* |
| Chamber family | Soft-shell portable · walk-in or wheelchair entry | Soft-shell portable · vertical sitting |
| Position | Vertical sitting | Vertical sitting |
| Pressure | 1.3 / 1.4 ATA · confirm selected configuration | 1.3 / 1.5 ATA |
| Dimensions | 56 × 52 × 70 in (L × W × H) | 55 × 26 × 63 in (L × W × H) |
| Cabin weight | Approx. 33.1 lbs | Approx. 26.5 lbs |
| Oxygen delivery | 93% via headset / facial mask | 93% via headset / facial mask |
| Oxygen flow | 5 / 10 L/min configurations | 5 / 10 L/min configurations |
| Setup / installation | Freight to the delivery address; place and connect per the manufacturer manual; first-use briefing with Echelon | Freight to the delivery address; place and connect per the manufacturer manual; first-use briefing with Echelon |
| Warranty | 2 years | 2 years |
* Starting prices are for a standard setup. Configuration, optional upgrades, and delivery requirements may affect the final amount. Exact pricing is confirmed in writing before you order. Financing can be discussed during consultation.
WHAT ARRIVES
Inside the crate.
- Chamber with internal metal frame
- Washable cotton protective cover
- Internal pressure gauge and emergency valve
- Air cooler
- Air compressor
- Oxygen concentrator; confirm 5 or 10 L/min configuration
Portable chamber deliveryBuilt for you.
Built for you.
Then on its way.
Order to delivery4–6 weeks
+First-use supportWith Echelon
Total lead time from order to delivery. The studio confirms the arrangements for your destination.
Freight to your siteArranged to your delivery address.
Portable chambers arrive by freight. Place and connect the hardware per the manufacturer manual, with first-use support from Echelon.Place and connect the hardware per the manufacturer manual. First pressurization takes place with Echelon on a briefing call.
First pressurization, with us.Your first pressurization takes place with Echelon on a briefing call.
Built to order. All sales final. No returns. Covered by a 2-year warranty, with lifetime support after at standard rates. View ownership terms.
Your arrival checklist.
0 of 4 reviewedOpen each point, then mark it reviewed. This checklist stays on this page and is not sent to the studio.
Measure the route, not just the room.
Check doorways, turns, and the installation room against the confirmed chamber and crate dimensions. Discuss stairs and any access restrictions with the studio before ordering.
Confirm your power configuration.
Confirm the required electrical configuration and room requirements with the studio before your chamber is built.
Plan your installation.
Portable chambers arrive by freight. Place and connect the hardware per the manufacturer manual, with first-use support from Echelon. Review the setup instructions before delivery. First pressurization takes place with Echelon on a briefing call.
Photograph the crate on arrival.
Inspect and photograph the crate when it arrives. Contact the studio about any damage; the studio coordinates freight claims. Echelon provides first-use support by phone.
